The Circleblast Internal Pipe Blasters are designed to blast clean pipes ranging in size from 1¼” to 12” (32 to 305 mm) I.D. The tool connects to an abrasive blast machine in place of a standard nozzle. In operation, the Circleblast nozzle directs the air/abrasive mixture at a deflection tip. This tip causes the blast pattern to fan out into a wide, circular pattern, which cleans the inside of the pipe as the tool is passed through. Two centering devices are available to hold the tool in position during passes in different diameter pipe.

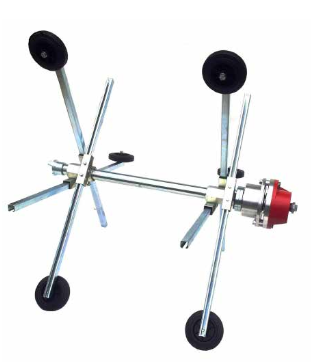

The Spinner blast tool cleans the interior of pipes up to 12 meters long and ranging in size from 203 mm (8”) to 915 mm (36”) I.D. The tool connects to most abrasive blasting machines in place of a standard nozzle. As the tool passes through the length of the pipe being cleaned, abrasive is ejected by two special nozzles mounted on a rotating head. Optimal rotating speed is controlled by the braking system. An adjustable centering carriage supports the tool through the pipe. The chart below shows the recommended centering legs, nozzle sizes and compressor capacities for different pipe diameters.

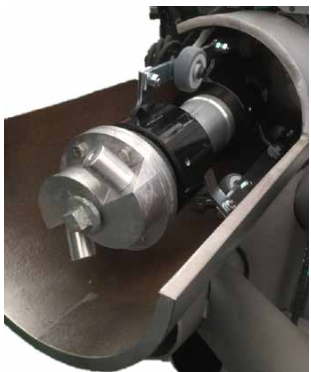

The Jumbo Internal Pipe Blaster tool cleans the interior of pipes up to 12 meter long and ranging in size from 1016 mm (40”) to 1930 mm (76”) I.D. The tool connects to most abrasive blasting machines in place of a standard nozzle. As the tool passes through the length of the pipe being cleaned, abrasive is ejected by two special nozzles mounted on a rotating head. Optimal rotating speed is controlled by the braking system. An adjustable centering carriage supports the tool through the pipe.

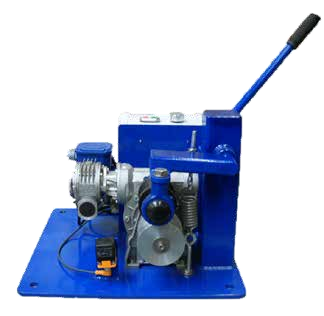

The AIRBLAST semi-automatic winch system is specially developed for the Airblast Internal Pipe Cleaning Equipment such as the Circleblast, Spinner blast and Jumboblast as well as for the Airblast Pipe Coating Equipment such as the Pipecoater-III/125/300/900. This machine is designed with a PLC controlled hoisting system to pull at the blast hose with an adjustable constant speed to clean the inside of pipes. The speed can be adjusted from almost zero to 3mtr/minure or more. The Airblast Winch system can be produced for all kind of power supplies: 230VAC 1 phase, 400VAC 3phases, 12VDC or 24VDC. The travel speed of the Airblast Pipe Cleaners inside the pipe is operated and controlled by the control box which is mounted on the rigged frame. The control panel features the on/off switch as well the potential meter for the speed control which is adjustable from 0 to 100%. The semi-automatic winch system is made with high grade components to withstand the extreme environment of open blast cleaning, and has protection class IP55.
