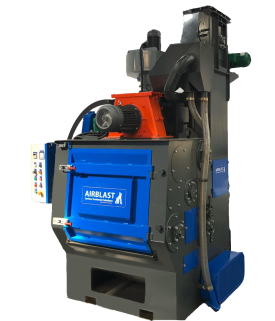

The TB15GN, TB(R)32 & TB28GN machines can be used to remove sand and rust from cast, forged and welded parts as well as aluminum and other non-ferrous parts. This series is especially effective for hard-to-clean parts, non-fragile parts and non-core castings. These machines are also available in full automation.
Type
TB15GN
TB28GN
Size of roller (mm)
1090 x 1245
1245 x 1778
Diameter of roller (mm)
1092
1250
Working cubage (m3)
0.43
0.79
Max. weight of 1 piece (kgs)
227
363
Max. size of 1 piece (mm)
1000
1000
Loading weight (kgs)
800
3500
Pill impelling volume (kgs/min)
480
340 x 2
Impeller head power (kw)
22
30
The TB32 Series can be used for surface cleaning, removing rust and surface intensification of various small and middle sized cast or forged work pieces. The addition of a continuous conveyor allows for increased production rates when used as part of a production line.
